HH-PLOT-Molecular sieve 2021甲烷毛细管色谱柱

2021甲烷毛细管色谱柱，液化石油气，二甲醚，甲缩醛，乙缩醛，乙醇，室内空气，焦炉煤气，炼厂气，天然气，变压器油，多氯联苯，植物油，6号溶剂残留，裂解进样器，增塑剂，氨水

2021甲烷毛细管色谱柱
2021甲烷毛细管色谱柱 详细信息：

甲烷毛细管柱：

固定相：多孔层开口管分子筛柱或其他等效毛细管柱

规格：30m*0.53mm*25um
型号：HH-PLOT-Molecular sieve
应用：环境空气/固定污染源废气，甲烷，总烃，非甲烷总烃测定 气相色谱法

浩瀚色谱（山东）应用技术开发有限公司采用十通阀进样,总烃柱与甲烷专用柱分离、单FID检测器气相色谱法,一次进样可测得环境空气或固定源中的甲烷、总烃及非甲烷总烃的检测数据.实验明确不同氧气含量的气体样品在分析过程中,氧气峰对总烃的干扰情况,指出避免单独检测除烃气样的可行性.实验采用注射器采样,样品的放置时长在8h之内.方法的检出限为:总烃与非甲烷总烃均为0.04 mg/m3;重复性相对标准偏差低于1.5％;方法的加标回收率分别是总烃在90.3％～ 113.0％之间,非甲烷总烃在91.1％～110.0％之间.

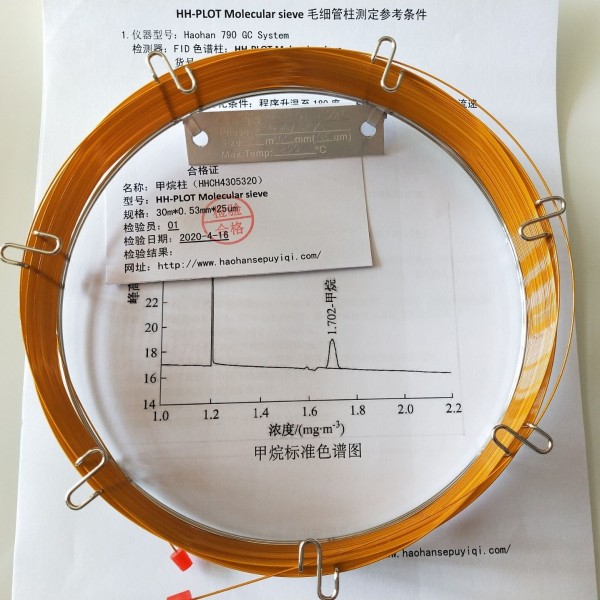

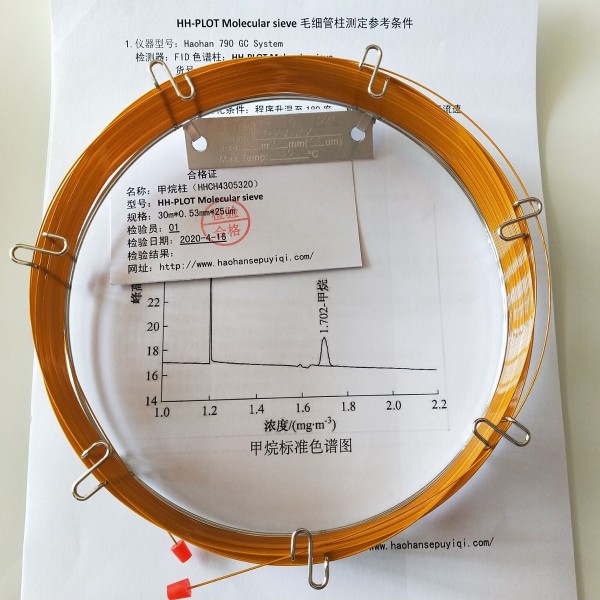

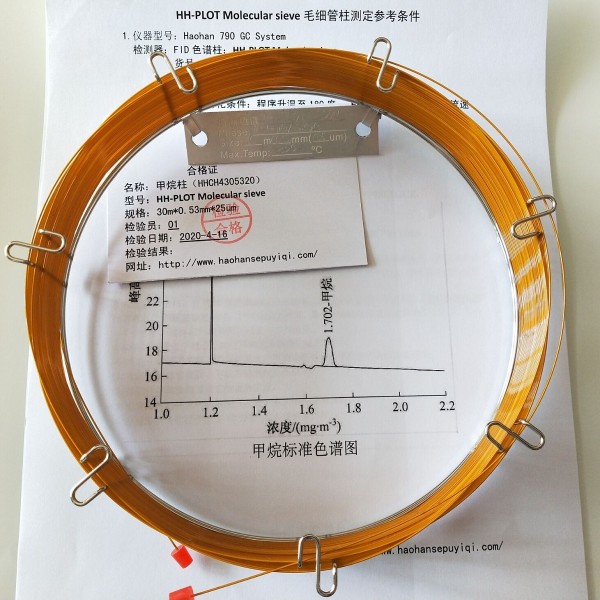

2021甲烷毛细管色谱柱 测试谱图：




2021 Methane Capillary Column
2021 Methane Capillary Chromatographic Column Details:

Methane capillary column:

Stationary phase: porous layer open-tube molecular sieve column or other equivalent capillary column

Specification: 30m*0.53mm*25um
Model: HH-PLOT-Molecular sieve
Application: Determination of ambient air/stationary pollution source exhaust gas, methane, total hydrocarbons, non-methane total hydrocarbons, gas chromatography



Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. adopts ten-way valve sampling, the total hydrocarbon column is separated from the methane dedicated column, and the gas chromatography method with a single FID detector can be used to measure methane and total methane in ambient air or stationary sources. The detection data of hydrocarbons and non-methane total hydrocarbons. The experiment clarified the interference of oxygen peaks on total hydrocarbons during the analysis of gas samples with different oxygen content, and pointed out the feasibility of avoiding separate detection of hydrocarbon-removing gas samples. The experiment uses syringe sampling, and the sample The best storage time is within 8h. The detection limit of the method is: total hydrocarbons and non-methane total hydrocarbons are both 0.04 mg/m3; the relative standard deviation of repeatability is less than 1.5%; the method's standard recovery rate is total Hydrocarbons are between 90.3% and 113.0%, and total non-methane hydrocarbons are between 91.1% and 110.0%.


2021 methane capillary column test spectrum:
